Chevrolet Cobalt Owners Manual: Seat Adjustment

Manual Seats

1. Lift the bar to unlock


1. Lift the bar to unlock the seat.

2. Slide the seat to the desired position and
release the bar.

Try to move the seat to be sure it is locked in place.

See Manual Seats.

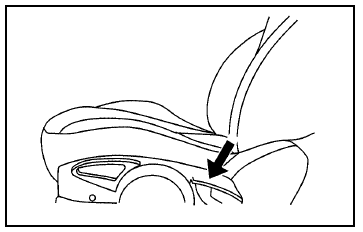

Seat Height Adjuster

To raise or lower the driver seat, move the lever upward


To raise or lower the driver seat, move the lever upward or downward repeatedly until the seat is at the desired height.

See Seat Height Adjuster.

Reclining Seatbacks

To recline the seatback, do the following:


To recline the seatback, do the following: 1. Lift the recline lever.

2. Move the seatback to the desired position, then release the lever to lock the seatback in place.

3. Push and pull on the seatback to make sure it is locked.

See Reclining Seatbacks.

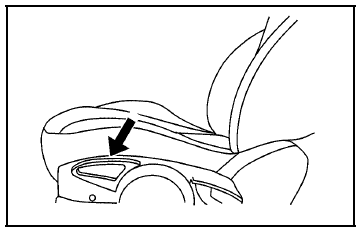

Manual Lumbar

If equipped, the lumbar


If equipped, the lumbar knob is located on
the front of the driver
seat lower cushion.

Turn it clockwise or
counterclockwise to
increase or decrease
the lumbar support.

See Manual Lumbar.

Heated Seats

Driver's Switch shown
Driver's Switch shown

This vehicle may have heated front seats.

The switches are located on the instrument panel
above the climate control system.

Press the side of the switch with the double indicator lights to turn the seat to the highest setting.

Press the side of the switch with the single indicator light to turn the seat to the lowest setting.

Return the switch to the center to turn off the heated seat.

See Heated Seats.

    Windows
    Power Windows For vehicles with power windows, the switches on the driver door armrest control each window. The switch on each passenger door controls only that doors window. Sedan Shown, Co ...

    Head Restraint Adjustment
    Do not drive until the head restraints for all occupants are installed and adjusted properly. See Head Restraints. ...
