Exterior

Front

1. Remove front door trim panel as outlined in "Door Trim Panel."
2. Remove front door water deflector.
3. Remove three front door handle retaining screws, Fig. 1.
4. Disengage front door exterior handle rod from door lock assembly, then remove door handle.
5. Reverse procedure to install.

Rear

1. Remove rear door trim panel as outlined in "Door Trim Panel.".
2. Remove rear door water deflector.
3. Remove two rear door handle retaining screws.
4. Disengage rear door exterior handle rod from door lock assembly, then remove door handle.
5. Reverse procedure to install, torque door handle to 89 inch lbs.

Interior

1. Remove interior door handle retaining screw.
2. Disengage cable from interior door handle.
3. Remove door handle.
4. Reverse procedure to install.

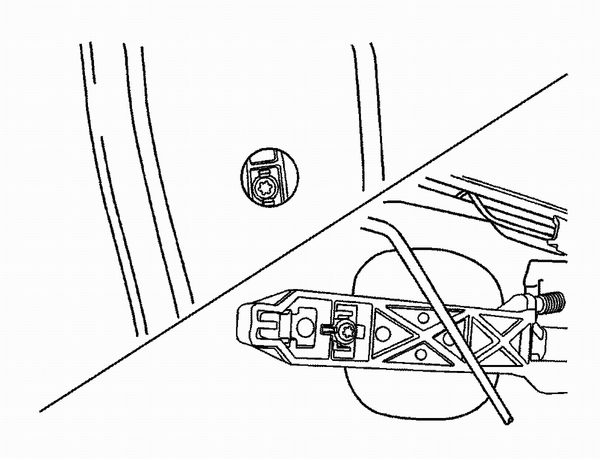

Fig. 1 Front door exterior door handle components
