Chevrolet Cobalt Service & Repair Manual: Hood Support Strut, Replace
| Warning: Body injury may occur
if no supporting rod is holding hood open when removing hood support strut. |
| Apply pressure only at end of
hood assist rod for removal or installation. Do not apply pressure to middle
of rod because damage or bending will result. |
| Do not replace both hood support
struts at same time, replace one side followed by other. |
| 1. |
Open and support hood with a suitable
supporting rod. |
| 2. |
Release clip (1) retaining hood assist
rod (2) to upper assist rod ball stud using a suitable small flat
bladed tool, Fig. 1. |
| 3. |
Remove hood support strut from vehicle. |
| 4. |
Reverse procedure to install. Ensure
that both clips are fully seated on hood support strut. |
|

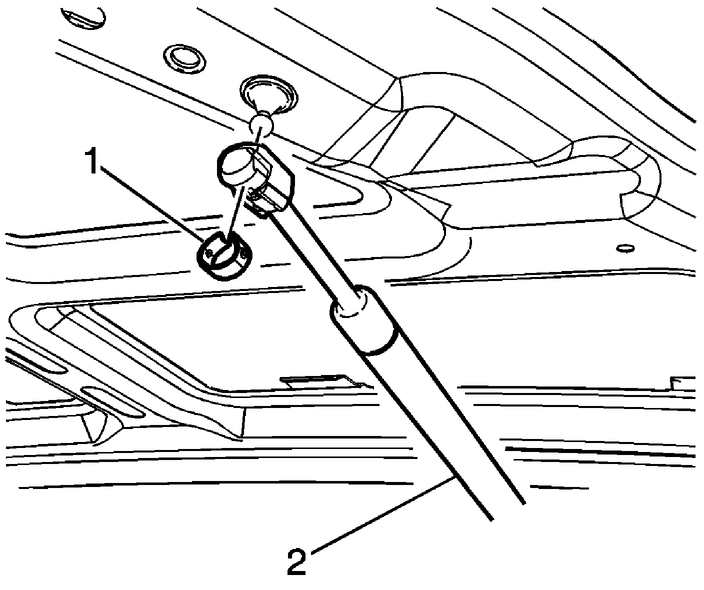

Fig. 1 Hood support strut removal
