Chevrolet Cobalt Service & Repair Manual: Front Bumper Fascia
Removal
| 1. |
Remove headlamp assemblies, as required. |
| 2. |
Remove front fender liners as outlined
in Front Fender Liner. |
| 3. |
Remove front bumper air deflector,
as required. |
| 4. |
Remove fog lamps, as required. |
| 5. |
Remove lower front bumper fascia plastic
retainers (1), Fig. 1. |
| 6. |
Remove front bumper fascia bolts. |
| 7. |
Remove upper front bumper fascia plastic
retainers (3). |
| 8. |
Remove front bumper fascia. |
|
Installation
| 1. |
Carefully position front bumper fascia
to vehicle while ensuring fascia tabs align to fenders, Fig.
1.. |
| 2. |
Install upper front bumper fascia plastic
retainers (3). |
| 3. |
Install fascia bolts. Torque
to 89 inch lbs. |
| 4. |
Install plastic retainers in lower
front bumper fascia (1). |
| 5. |
Install fog lamps, as required. |
| 6. |
Install front bumper air deflector,
as required. |
| 7. |
Install front fender liners as outlined
in Front Fender Liner. |
| 8. |
Install headlamp assemblies, as required. |
|

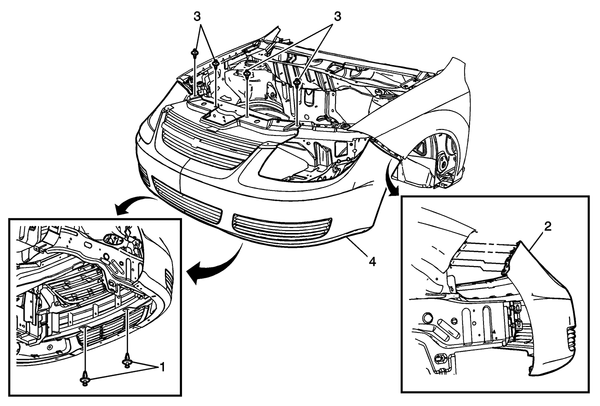

Fig. 1 Front bumper fascia
