Chevrolet Cobalt Owners Manual: Storing a Flat or Spare Tire and Tools

Chevrolet Cobalt Owners Manual / Service and Appearance Care / Storing a Flat or Spare Tire and Tools

WARNING:
Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place.

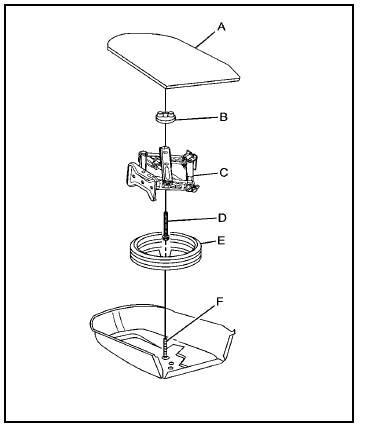

Base Model
Base Model

A. Cover.

B. Retainer.

C. Jack and Wheel Wrench.

D. Stow Bolt Extension Rod.

E. Flat Tire.

F. Bolt.

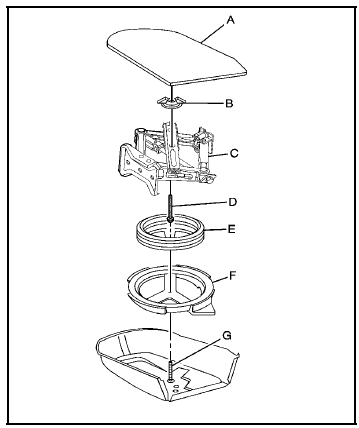

Uplevel Model
Uplevel Model

A. Cover.

B. Retainer.

C. Jack and Wheel Wrench.

D. Stow Bolt Extension Rod.

E. Flat Tire.

F. Foam Support.

G. Bolt.

To store a flat tire and tools: 1. Remove the stow bolt extension rod and sleeve from the jack.

2. Screw the stow bolt extension rod and the sleeve into the existing spare tire hold-down bolt.

3. If your vehicle has aluminum wheels, first remove the center cap with your hand or the wheel wrench.

4. Place the flat tire face down into the spare tire tub.

5. Re-attach the wheel wrench to the jack.

6. Place the jack into the center of the flat tire, being careful not to scratch the inside of the wheel.

7. Remove the plastic sleeve from the stow bolt extension rod. Secure the jack and road wheel using the larger plastic retainer.

8. If used in the vehicle, place the smaller jack retainer nut in a safe place until you are ready to store the compact spare tire in the trunk again.

To store the compact spare tire and tools, follow the previous procedure without using the stow bolt extension rod and see Removing the Spare Tire and Tools and follow the removal procedure, in reverse, for the proper jack storage instructions for this vehicle.

The compact spare tire is for temporary use only.

Replace the compact spare with a full-size tire as soon as possible.

    Removing the Flat Tire and Installing the Spare Tire (SS Model)
    The SS Model has larger performance brakes than the base model. The compact spare tire will not clear the front brakes. Do not use the compact spare tire in the event of a front flat tire. You mu ...

    Compact Spare Tire
    WARNING: Driving with more than one compact spare tire at a time could result in loss of braking and handling. This could lead to a crash and you or others could be injured. Use only one compact s ...
