Chevrolet Cobalt Service & Repair Manual: Outside Rearview Mirror


1. Remove panels and components.
2. Remove rearview outside mirror nuts (1), Fig. 1.
3. Disconnect electrical connector and remove mirror.


1. Position outside rearview mirror to door and connect electrical connector.
2. Install rearview outside mirror nuts (1), Fig. 1.
3. Torque to 89 inch lbs.
4. Install panels and components.

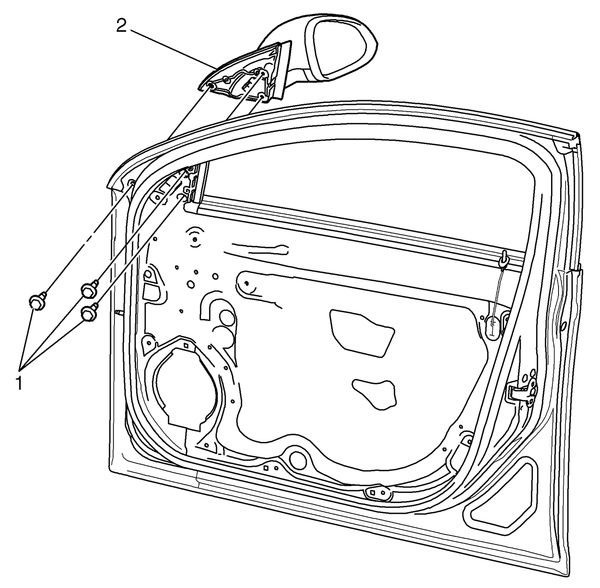

Fig. 1 Outside rearview mirror
