Chevrolet Cobalt Service & Repair Manual: Window Regulator Motor R&R

Front

Coupe

1. Remove interior trim panel.
2. Remove water deflector.
3. Move window to full up position and secure in place with tape.
4. Remove side door window regulator motor bolts, Fig. 1.
5. Remove front side door window regulator motor, Fig. 1.
6. Disconnect electrical connector.
7. Reverse procedure to install. Torque window regulator bolts to 89 inch lbs.

Sedan

1. Remove window regulator.
2. Remove front side door window regulator motor bolts, Fig. 2.
3. Remove front side door window regulator motor, Fig. 2.
4. Reverse procedure to install, noting following:
  a. Torque window regulator motor bolts to 89 inch lbs.
  b. Inspect window for proper operation before installing door trim panel.

Rear

1. Remove interior trim panel.
2. Remove water deflector.
3. Move window to full up position and secure in place with tape.
4. Remove side door window regulator bolts. Loosen bolts enough so that regulator assembly will lift out of T-slots in door inner panel.
5. Remove rear side door window regulator assembly, Fig. 3.
6. Remove rear side door window regulator motor, Fig. 3.
7. Disconnect electrical connector.
8. Reverse procedure to install. Torque regulator motor bolts to 89 inch lbs.

Fig. 1

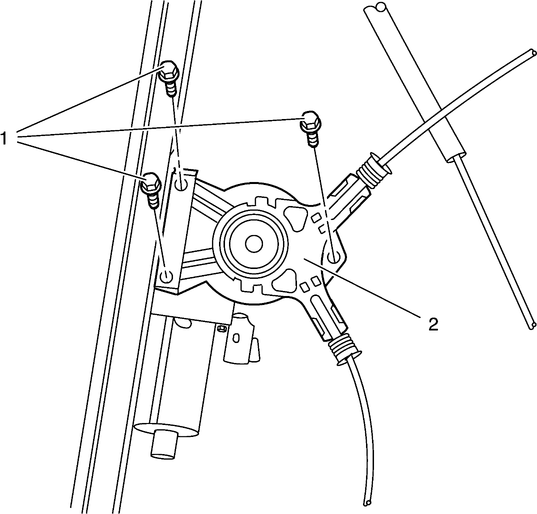

Fig. 2

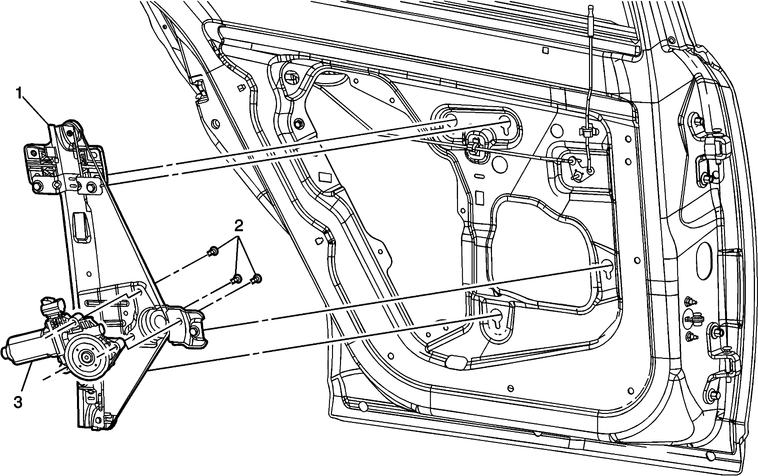

Fig. 3
