Chevrolet Cobalt Service & Repair Manual: Front Bumper Upper Fascia Grille

Chevrolet Cobalt Service & Repair Manual / Body & Frame / Front Bumper Upper Fascia Grille

Removal

1. Remove front bumper fascia, as outlined in Front Bumper Fascia.
2. Remove front bumper fascia grille push pin retainers (1), Fig. 1.
3. Remove front bumper fascia grille fasteners (2).
4. Use a flat-bladed tool to release grille from fascia.
5. Remove grille from fascia (3).

Installation

1. Install grille to fascia ensuring locking tabs are fully seated.
2. Install front bumper fascia grille push pin retainers (1), Fig. 1.
3. Install front bumper fascia grille fasteners (2).
4. Install front bumper fascia as outlined in Front Bumper Fascia.

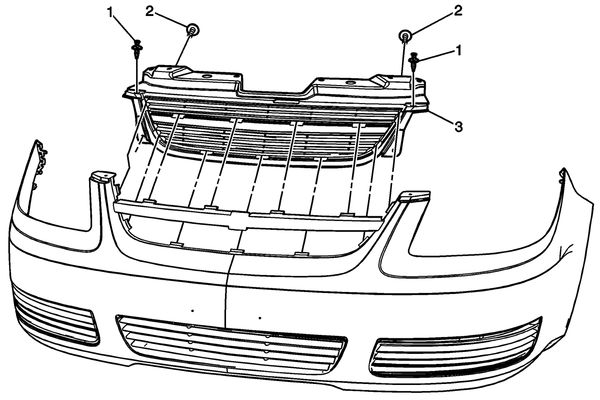

Fig. 1 Front bumper upper fascia grille
