Chevrolet Cobalt Service & Repair Manual: Front Fender Liner

Chevrolet Cobalt Service & Repair Manual / Body & Frame / Front Fender Liner

Removal

1. Lift and support vehicle.
2. Remove tire and wheel assembly.
3. Remove front wheelhouse liner retainers (1), Fig. 1.
4. Remove front wheelhouse liner fasteners (2).
5. Remove rocker panel screws (3).
6. Lift front fender liner from rocker molding.
7. Remove front fender liner (4).

Installation

1. Install front fender liner (4), Fig. 1.
2. Install rocker panel screws (3).
3. Install front wheelhouse liner fasteners (2).
4. Install front wheelhouse liner retainers (1).
5. Install tire and wheel assembly.
6. Lower vehicle.

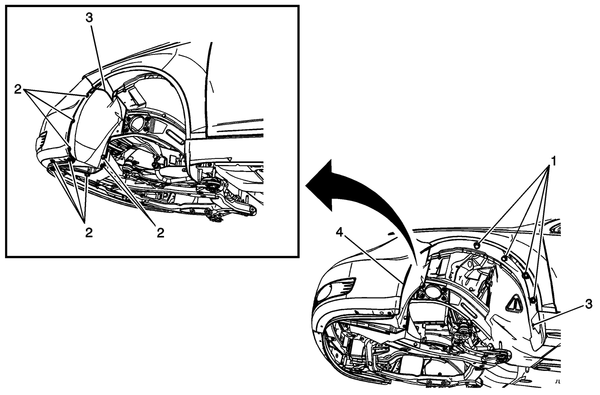

Fig. 1 Front wheelhouse fender liner
