Chevrolet Cobalt Service & Repair Manual: Front Side Door Outside Handle

Chevrolet Cobalt Service & Repair Manual / Body & Frame / Front Side Door Outside Handle

Removal

1. Remove panels and components.
2. Remove front side door outside handle screws (1), Fig. 1.
3. Disconnect outside handle rod from lock assembly before removing handle.
4. Remove handle (2).

Installation

1. Position front side door outside handle (2).
2. Connect outside handle rod to lock assembly, Fig. 1.
3. Install front side door handle screws (1). Torque to 89 inch lbs.
4. Install panels and components.

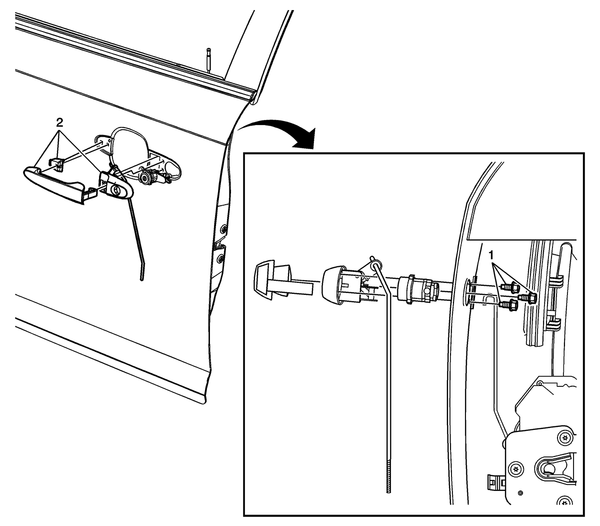

Fig. 1 Front side door outside handle
