Chevrolet Cobalt Service & Repair Manual: Rear Compartment Lid Latch
Removal
| 1. |
Release lock rod using a flat-bladed
tool. |
| 2. |
Disconnect electrical connector if
equipped. |
| 3. |
Remove rear compartment latch bolts
(2), Fig. 1. |
| 4. |
Remove latch (3) through access hole. |
|
Installation
| 1. |
Install latch through access hole,
Fig. 1. |
| 2. |
Install rear compartment latch bolts.
Torque to 89 inch lbs. |
| 3. |
Install electrical connector if equipped,
to latch. |
|

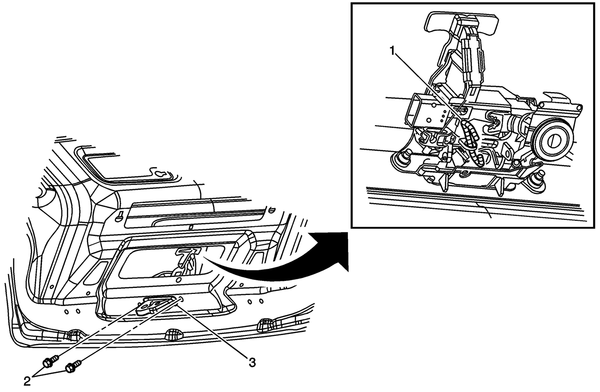

Fig. 1 Rear compartment latch
