Chevrolet Cobalt Service & Repair Manual: Rear Side Door Latch

Chevrolet Cobalt Service & Repair Manual / Body & Frame / Rear Side Door Latch

Removal

1. Remove interior trim panel.
2. Remove water deflector.
3. Remove rear side door lock screws (1), Fig. 1.
4. Remove rear side door latch assembly (2).

Installation

1. Install rear side door latch assembly (2), Fig. 1.
2. Install rear side door lock screws (1). Torque to 89 inch lbs.
3. Install water deflector.
4. Install interior trim panel.

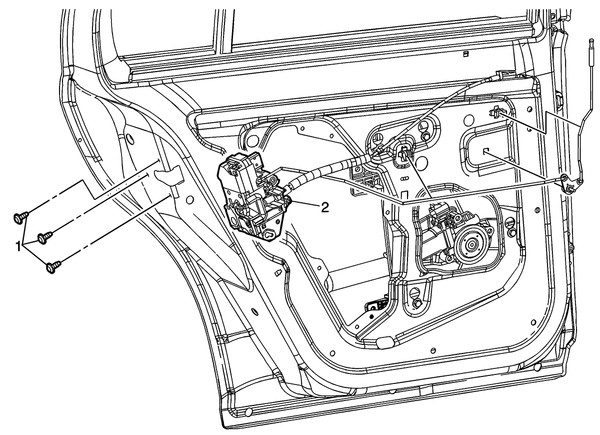

Fig. 1 Rear side door lock
