Removal

1. Remove interior trim panel.
2. Remove water deflector.
3. Remove rear side door outside handle screws (1), Fig. 1.
4. Disconnect outside handle rod from lock assembly before removing handle.
5. Removal rear door outside handle (2).

Installation

1. Install rear door outside handle (2), Fig. 1.
2. Connect outside handle rod to lock.
3. Install rear door outside handle screws (1). Torque to 89 inch lbs.
4. Install water deflector.
5. Remove interior trim panel.

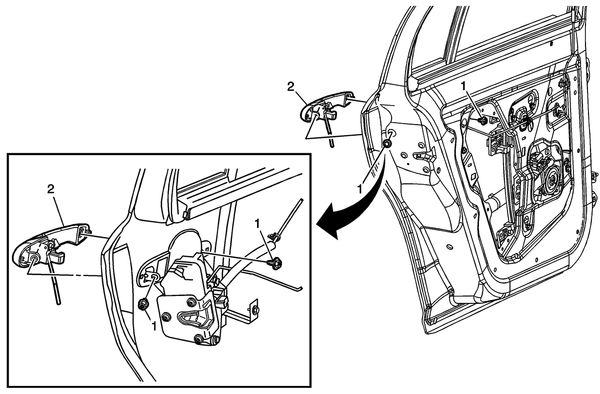

Fig. 1 Rear side door outside handle
