Chevrolet Cobalt Service & Repair Manual: Valve Cover Gasket R&R

1. Remove the intake manifold cover.
2. Remove the air cleaner outlet duct.
3. Disconnect the intake (3) and exhaust (2) camshaft position actuator solenoid valve electrical connectors, Fig. 1.
4. Remove the ignition coils.
5. Remove the engine harness clips (1, 2) from the cover, Fig. 2.
6. Remove the fuel feed line retainers (1, 2) from the engine brackets, Fig. 3.
7. Remove the camshaft cover bolts, Fig. 4.
8. Remove the camshaft cover.
9. Reverse procedure to install, noting the following:
  a. Torque camshaft cover bolts to 89 inch lbs.
  b. Torque ignition coil bolts to 89 inch lbs.
  c. Torque air cleaner and throttle body clamps to 44 inch lbs.

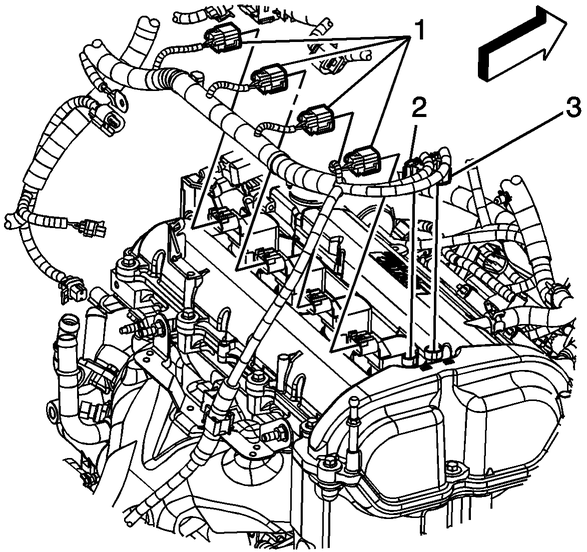

Fig. 1 Camshaft position solenoid valve connector

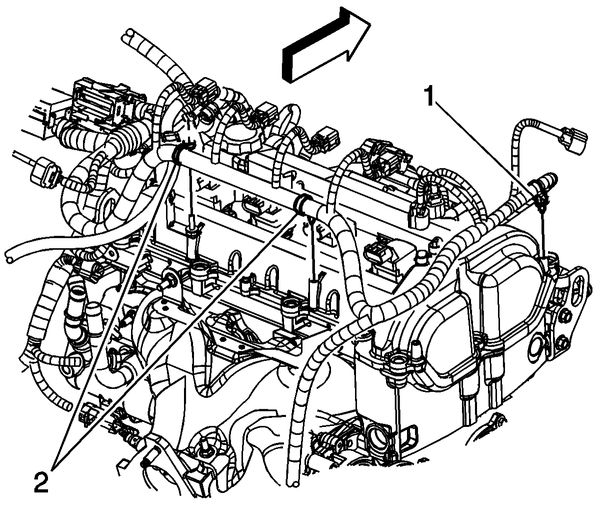

Fig. 2 Engine harness replacement

Fig. 3 Fuel feed line retainer replacement

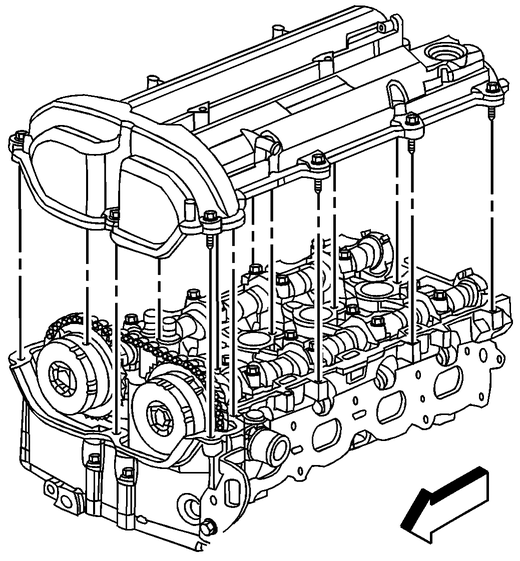

Fig. 4 Camshaft cover replacement
