Chevrolet Cobalt Service & Repair Manual: Rear Turn Signal Lamp Bulb, Replace
Coupe
| Warning: Halogen bulbs contain
gas under pressure. Handling a bulb improperly could cause it to shatter
into flying glass fragments. To help avoid personal injury: Turn off the
lamp switch and allow the bulb to cool before changing the bulb. Leave the
lamp switch OFF until the bulb change is complete. Always wear eye protection
when changing a halogen bulb. Handle the bulb only by its base. Avoid touching
the glass. Keep dirt and moisture off the bulb. Properly dispose of the
used bulb. Keep halogen bulbs out of the reach of children. |
| Caution: Avoid touching the
bulb or letting the bulb come in contact with anything damp. Oil from your
skin or moisture on the bulb can cause the bulb to explode when the bulb
is turned on. If either comes in contact with the bulb, clean the bulb with
alcohol or a suitable degreaser and wipe the bulb dry. |
| 1. |
Remove tail lamp assembly. |
| 2. |
Rotate wiring harness connector (1)
counterclockwise and remove from tail lamp housing, Fig.
1. |
| 3. |
Remove tail stop/rear turn signal bulb
(2) from wire harness connector, Fig. 1. |
| 4. |
Reverse procedure to install. |
|
Sedan
| Warning: Halogen bulbs contain
gas under pressure. Handling a bulb improperly could cause it to shatter
into flying glass fragments. To help avoid personal injury: Turn off the
lamp switch and allow the bulb to cool before changing the bulb. Leave the
lamp switch OFF until the bulb change is complete. Always wear eye protection
when changing a halogen bulb. Handle the bulb only by its base. Avoid touching
the glass. Keep dirt and moisture off the bulb. Properly dispose of the
used bulb. Keep halogen bulbs out of the reach of children. |
| Caution: Avoid touching the
bulb or letting the bulb come in contact with anything damp. Oil from your
skin or moisture on the bulb can cause the bulb to explode when the bulb
is turned on. If either comes in contact with the bulb, clean the bulb with
alcohol or a suitable degreaser and wipe the bulb dry. |
| 1. |
Remove tail lamp assembly. |
| 2. |
Twist and remove bulb socket (1) from
tail lamp assembly, Fig. 2. |
| 3. |
Remove tail stop/rear turn signal bulb
(2), Fig. 2. |
| 4. |
Reverse procedure to install. |
|

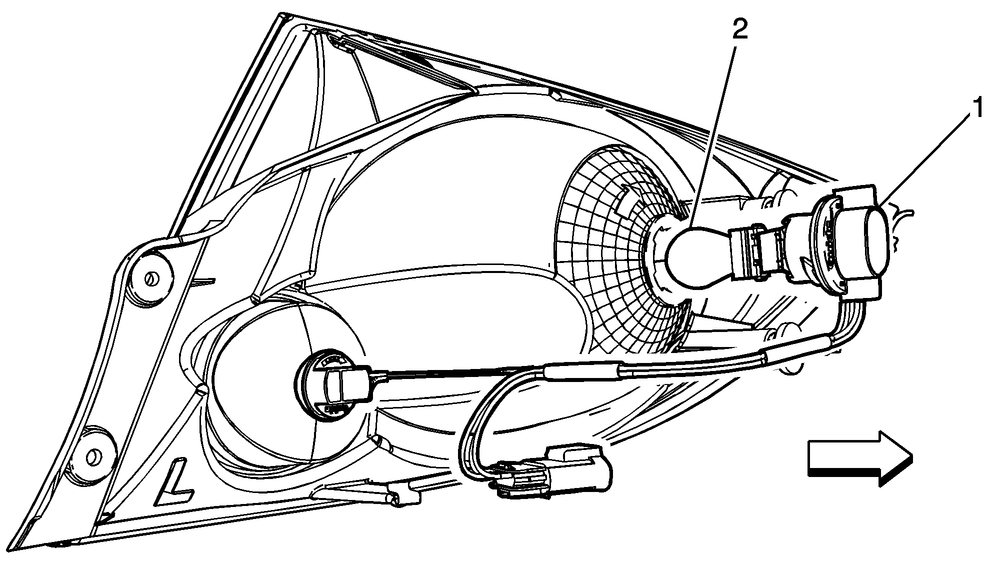

Fig. 1 Rear turn signal lamp bulb removal. Coupe

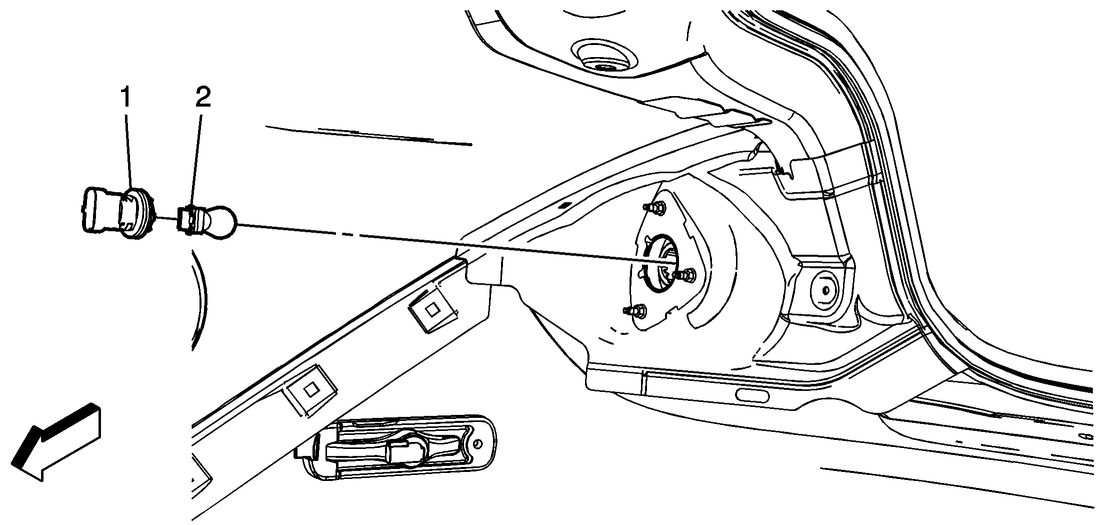

Fig. 2 Rear turn signal lamp bulb removal. Sedan
