Chevrolet Cobalt Owners Manual: Engine Compartment Overview

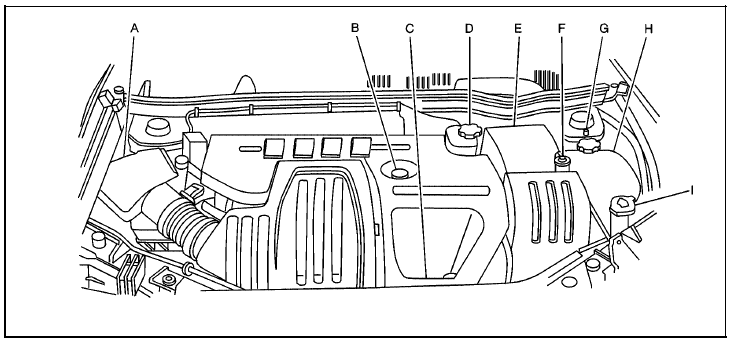

When you open the hood on the 2.2L L4 engine, here is what you will see:
A. Engine Air Cleaner/Filter (2.0L Turbo Engine) or Engine Air Cleaner/Filter (2.2L Engine).
B. Engine Oil Fill Cap. See “When to Add Engine Oil” under Engine Oil.
C. Engine Oil Dipstick (Out of View). See “Checking Engine Oil” under Engine Oil.
D. Brake Master Cylinder Reservoir. See “Brake Fluid” under Brakes and Hydraulic Clutch.
E. Engine Compartment Fuse Block.
F. Remote Positive (+) Terminal. See Jump Starting.
G. Remote Negative (-) Terminal. See Jump Starting.
H. Engine Coolant Surge Tank. See Cooling System.
I. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid.

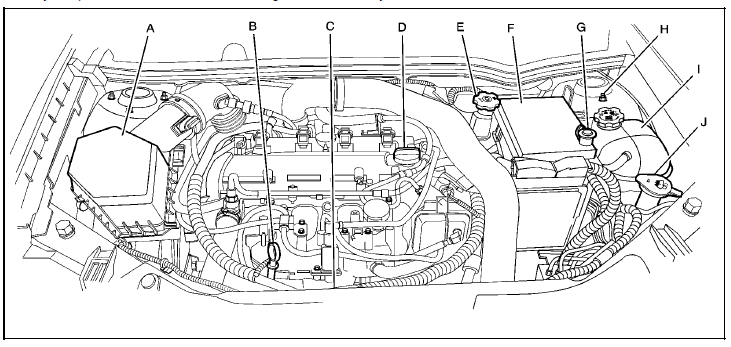

When you open the hood on the 2.0L L4 engine, this is what you will see:
A. Engine Air Cleaner/Filter (2.0L Turbo Engine) or Engine Air Cleaner/Filter (2.2L Engine).
B. Engine Oil Dipstick. See “Checking Engine Oil” under Engine Oil.
C. Engine Cooling Fan. See Cooling System.
D. Engine Oil Fill Cap. See “When to Add Engine Oil” under Engine Oil.
E. Brake Master Cylinder Reservoir. See “Brake Fluid” under Brakes and Hydraulic Clutch.
F. Engine Compartment Fuse Block.
G. Remote Positive (+) Terminal. See Jump Starting.
H. Remote Negative (-) Terminal. See Jump Starting.
I. Engine Coolant Surge Tank. See Cooling System.
J. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid.
Hood Release
To open the hood, do the following.
1. Pull the interior hood
release lever with
this symbol on it.
It is located under
the instrument panel
on the driver's side
of the vehicle.
2. Then go ...
Engine Oil
Checking Engine Oil
It is a good idea to check the engine oil level at each
fuel fill. In order to get an accurate reading, the oil must
be warm and the vehicle must be on level ground.
The engine ...
