Chevrolet Cobalt Service & Repair Manual: Front Bumper Fascia Bracket
Removal
| 1. |
Remove front bumper fascia as outlined
in Front Bumper Fascia. |
| 2. |
Remove front bumper fascia bracket
bolts (1), Fig. 1. |
| 3. |
Remove front bumper fascia bracket
(2). |
|
Installation
| 1. |
Position front bumper fascia bracket
(2) to fender, Fig. 1. |
| 2. |
Install bracket bolts. Torque
to 62 inch lbs. |
| 3. |
Install front fascia as outlined in
Front Bumper Fascia. |
|

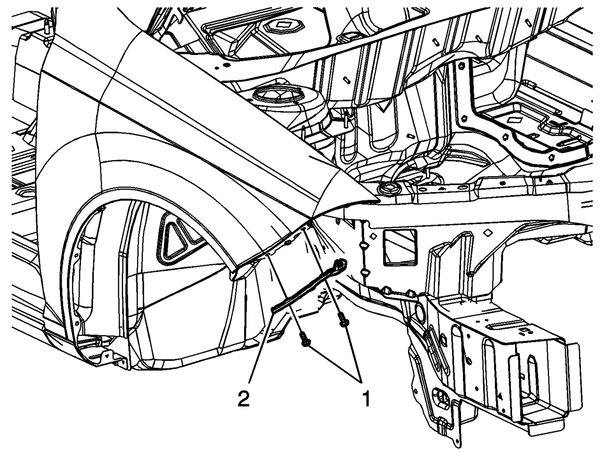

Fig. 1 Front bumper fascia bracket
