Chevrolet Cobalt Service & Repair Manual: Front Side Marker Lamp Bulb, Replace
| 1. |
Remove headlamp bracket assembly. |
| 2. |
Rotate marker lamp bulb harness electrical
connector (1) counterclockwise to unlock from headlamp assembly,
Fig. 1. |
| 3. |
Remove front side marker lamp bulb
(2), Fig. 1. |
| 4. |
Reverse procedure to install. |
|

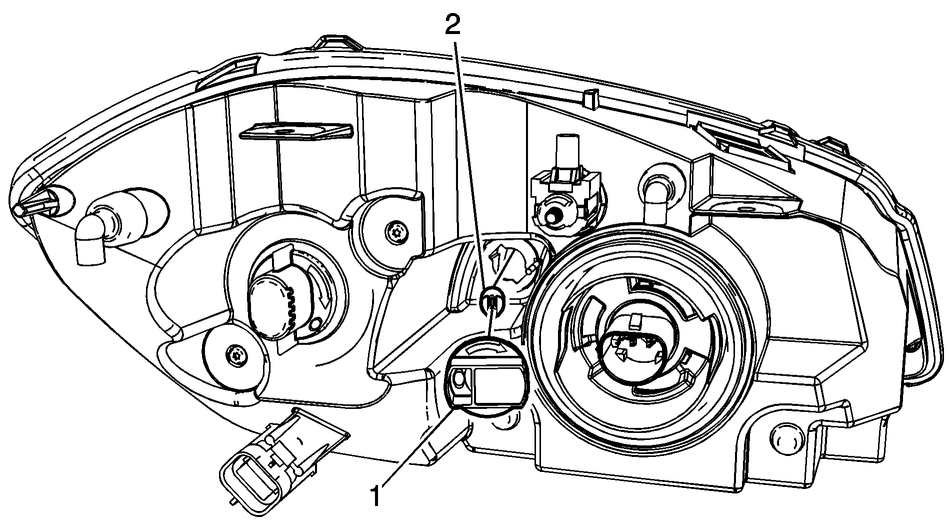

Fig. 1 Front side marker lamp bulb removal
Warning: Halogen bulbs contain
gas under pressure. Handling a bulb improperly could cause it to shatter
into flying glass fragments. To help avoid personal injury: Turn off the
lamp ...
Warning: Halogen bulbs contain
gas under pressure. Handling a bulb improperly could cause it to shatter
into flying glass fragments. To help avoid personal injury: Turn off the
lamp ...
