Chevrolet Cobalt Service & Repair Manual: Ignition Switch, Replace

Chevrolet Cobalt Service & Repair Manual / Electrical / Component Replacement / Ignition Switch, Replace

1. Remove steering column trim covers.
2. Disconnect ignition switch harness connector.
3. Turn ignition switch to Run position.
4. Remove ignition switch screws, then ignition switch from steering column, Fig. 1.
5. Reverse procedure to install.

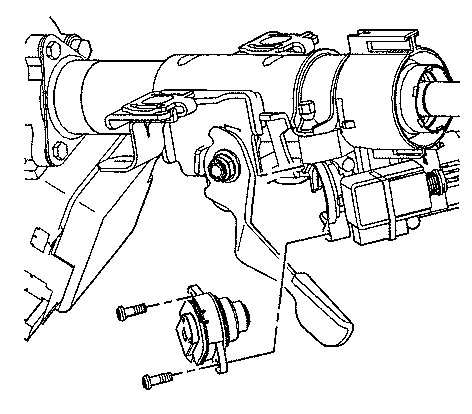

Fig. 1 Ignition switch replacement
