Chevrolet Cobalt Owners Manual: Windshield Wiper/Washer

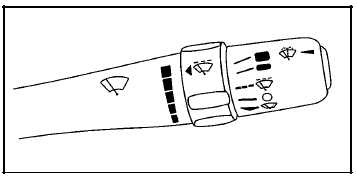

The windshield wiper lever is located on the right side of the steering column.
: Turns the wipers off.
: Turn this band for
intermittent or speed sensitive
operation. As vehicle speed increases or decreases, the
wiper interval also increases or decreases.
: Delays wiping cycle. Turn
the band up for more
frequent wipes.
: Slow wipes.
: Fast wipes.
: Use for a single wiping
cycle.
Windshield Washer: Press the button at the end of the lever until the washers begin.
See Windshield Wipers and Windshield Washer.
Climate Controls
The vehicle's heating, cooling, and ventilation can be controlled with this system.

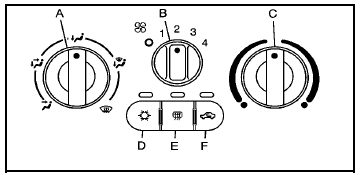

Vehicles with Air Conditioning shown, without Air
Conditioning similar
A. Air Delivery Mode
Control
B. Fan Control
C. Temperature Control
D. Air Conditioning
E. Rear Window Defogger
F. Recirculation
Exterior Lighting
The lever is on the left side of the steering column.
: Turns on the headlamps,
parking lamps, and
taillamps.
: Turns on the parking lamps
and taillamps only.
AUTO: Automatically turns on th ...
Radio(s)
Radio with CD (MP3) and USB Port shown
: Press to turn the system
on and off. Turn to
increase or decrease the volume.
BAND: Press to choose between FM, AM, or XM™,
if equipped.
f: Select ...
See also:
Chevrolet Cobalt Owners Manual. Mirror Adjustment
Exterior Mirrors
Controls for the outside
power mirrors are located
on the driver door
armrest.
1. Use the selector switch located below the four-way
control pad to choose either the left or right outside
mirror.
2. Press one of the four arrows located on the control
pad to move the mirro ...
