Chevrolet Cobalt Owners Manual: Floor Console Fuse Block
Chevrolet Cobalt Owners Manual / Service and Appearance Care / Floor Console Fuse Block

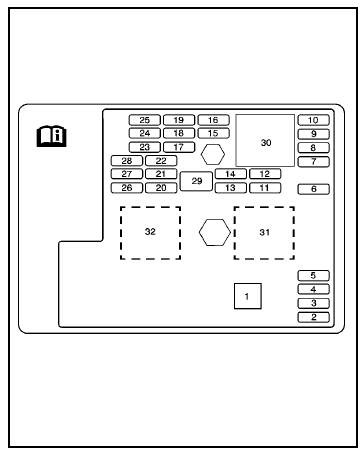

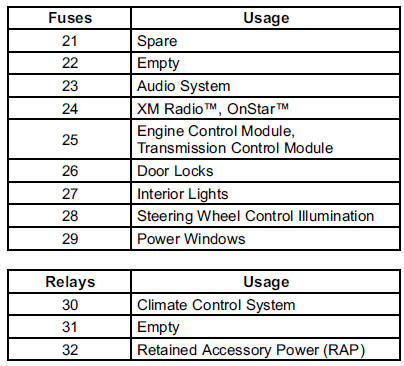

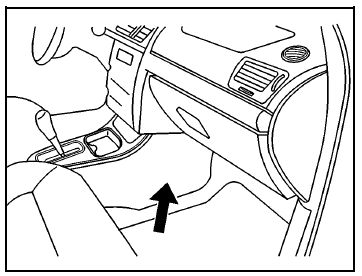

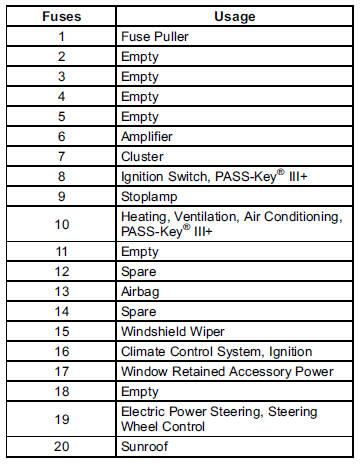

The floor console fuse block is located on the passenger side of the floor console behind the forward panel. The panel has three clips. Pull the panel to disconnect the three clips, and access the fuses.
Use the fuse puller to remove fuses.
Fuses and Circuit Breakers
The wiring circuits in the vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links. This greatly reduces the
chance of damage caused by elect ...
Engine Compartment Fuse Block
The engine compartment fuse block is located on the
driver side of the vehicle. Lift off the cover to check
the fuses. See Engine Compartment Overview for more information on location.
Notice: Spil ...
