Chevrolet Cobalt Owners Manual: Engine Compartment Fuse Block
Chevrolet Cobalt Owners Manual / Service and Appearance Care / Engine Compartment Fuse Block

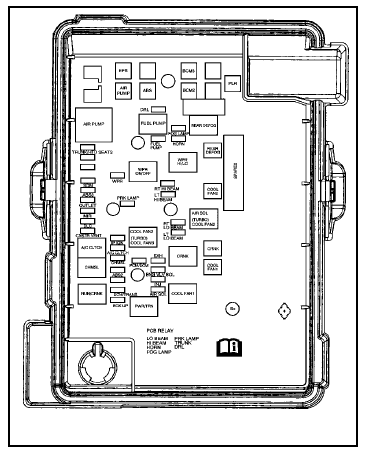

The engine compartment fuse block is located on the driver side of the vehicle. Lift off the cover to check the fuses. See Engine Compartment Overview for more information on location.
Notice: Spilling liquid on any electrical components on the vehicle may damage it. Always keep the covers on any electrical component.
Floor Console Fuse Block
The floor console fuse block is located on the
passenger side of the floor console behind the forward
panel. The panel has three clips. Pull the panel to
disconnect the three clips, and access th ...
Capacities and Specifications
The following approximate capacities are given in metric and English
conversions. Please refer to Recommended
Fluids and Lubricants for more information.
Engine Specifications ...
See also:
Chevrolet Cobalt Owners Manual. Engine Compartment Overview
When you open the hood on the 2.2L L4 engine, here is what you will see:
A. Engine Air Cleaner/Filter (2.0L Turbo Engine) or Engine Air Cleaner/Filter
(2.2L Engine).
B. Engine Oil Fill Cap. See “When to Add Engine Oil”
under Engine Oil.
C. Engine Oil Dipstick (Out of View). See “Checkin ...
