Chevrolet Cobalt Service & Repair Manual: Blower Motor Relay R & R

Refer to Fig. 1 when performing the following procedure.
1. Disconnect the blower motor resistor electrical connector.
2. Unsnap the blower motor resistor from the HVAC module and remove.
3. Reverse procedure to install.

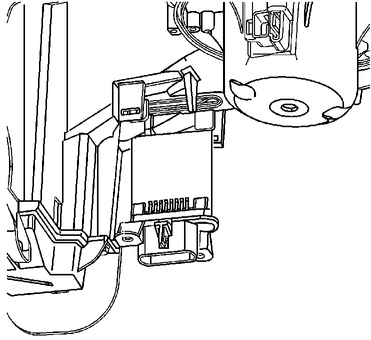

Fig. 1 Blower motor relay replacement
