Chevrolet Cobalt Service & Repair Manual: Compressor Pressure Relief Valve, Replace
| 1. |
Evacuate system as outlined under "Refrigerant
Recovery" in "General Service" on main menu selection. |
| 2. |
Remove high pressure relief valve from
compressor, Fig. 1. |
| 3. |
Remove and discard O-ring seal. |
| 4. |
Reverse procedure to install. Torque
valve to 62 inch lbs. |
|

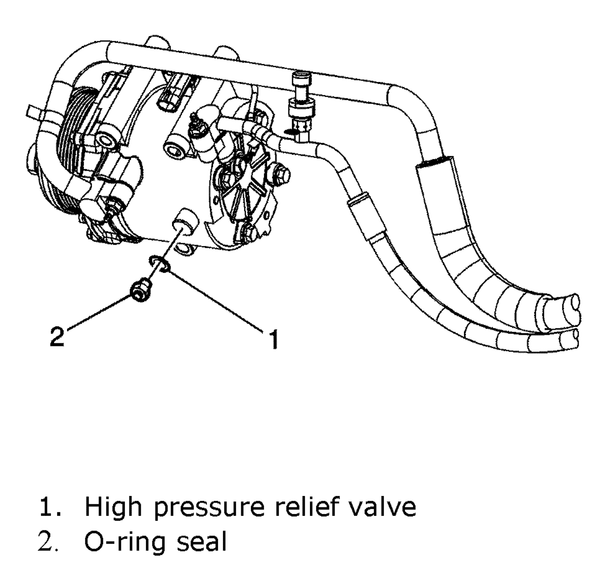

Fig. 1 Compressor pressure relief valve replacement
