FIG. NO. |
BUICK: |
|
|
EVAP System & Canister: |
|
|
Century FWD |
1 |
Century RWD |
2 |
Electra FWD |
3 |
Electra RWD |
2 |
Estate Wagon |
2 |
LeSabre FWD |
3 |
LeSabre RWD |
2 |
Park Avenue FWD |
3 |
Regal FWD |
4 |
Regal RWD |
2 |
Roadmaster |
2 |
Skyhawk |
1 |
Skylark |
5 |
CADILLAC: |
|
|
EVAP System & Canister: |
|
|
Brougham RWD |
2 |
Cimarron |
1 |
DeVille FWD |
3 |
DeVille RWD |
2 |
Fleetwood FWD |
3 |
Fleetwood RWD |
2 |
CHEVROLET: |
|
|
EVAP System & Canister: |
|
|
Astro Van |
6 |
Beretta |
1 |
Blazer C/K |
7 |
Blazer S |
8 |
Cab-Chassis C/K |
7 |
Camaro |
9 |
Caprice |
2 |
Cavalier |
1 |
Celebrity |
5 |
Chevette |
10 |
Citation |
5 |
Corsica |
1 |
Corvette |
11 |
G Series |
12 |
Impala |
2 |
Impala SS |
2 |
Lumina |
4 |
Lumina APV |
10 |
Malibu RWD |
2 |
Monte Carlo |
2 |
Nova FWD |
13 |
Pickup C/K |
7 |
S-10 |
8 |
Spectrum |
14 |
Sprint |
15 |
Suburban |
7 |
Tahoe |
7 |
Tracker |
16 |
GEO: |
|
|
EVAP System & Canister: |
|
|
Metro |
15 |
Prizm |
13 |
Spectrum |
14 |
Tracker |
16 |
GMC: |
|
|
EVAP System & Canister: |
|
|
Blazer C/K |
7 |
Cab-Chassis C/K |
7 |
G Series |
12 |
Jimmy C/K |
7 |
Jimmy S |
8 |
Pickup C/K |
7 |
S-15 |
8 |
Safari Van |
6 |
Sonoma |
8 |
Suburban |
7 |
Yukon |
7 |
OLDSMOBILE: |
|
|
EVAP System & Canister: |
|
|
Achieva |
5 |
Calais |
5 |
Cierra FWD |
1 |
Cutlass RWD |
2 |
Cutlass Supreme FWD |
4 |
Eighty-Eight FWD |
3 |
Eighty-Eight RWD |
2 |
Firenza |
1 |
Ninety-Eight FWD |
3 |
Ninety-Eight RWD |
2 |
Omega |
5 |
Silhouette |
10 |
PONTIAC: |
|
|
EVAP System & Canister: |
|
|
Bonneville FWD |
3 |
Bonneville RWD |
2 |
Catalina |
2 |
Firebird |
9 |
Grand Am |
5 |
Grand Prix FWD: |
4 |
Grand Prix RWD |
2 |
J2000 |
1 |
LeMans FWD |
10 |
LeMans RWD |
2 |
Sunbird |
1 |
Trans Sport |
10 |
T1000 |
10 |
6000 |
5 |
SATURN: |
|
|
EVAP System & Canister: |
|
|
S Series |
17 |
|
|
|
|

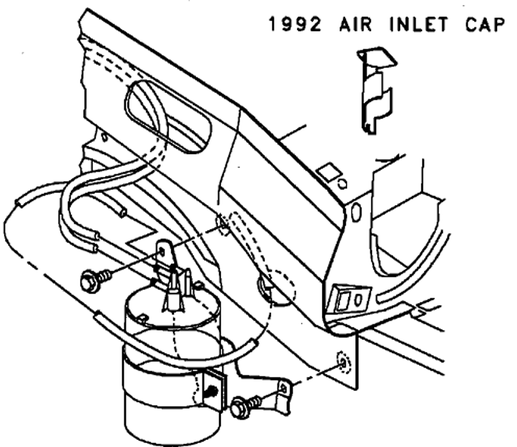

Fig. 1 Evaporative canister location.

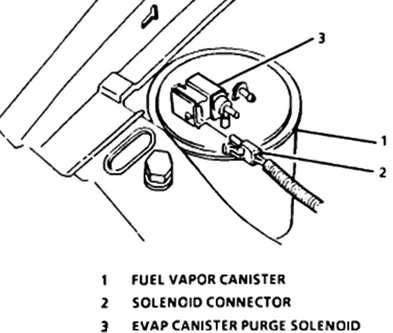

Fig. 2 Evaporative canister location.

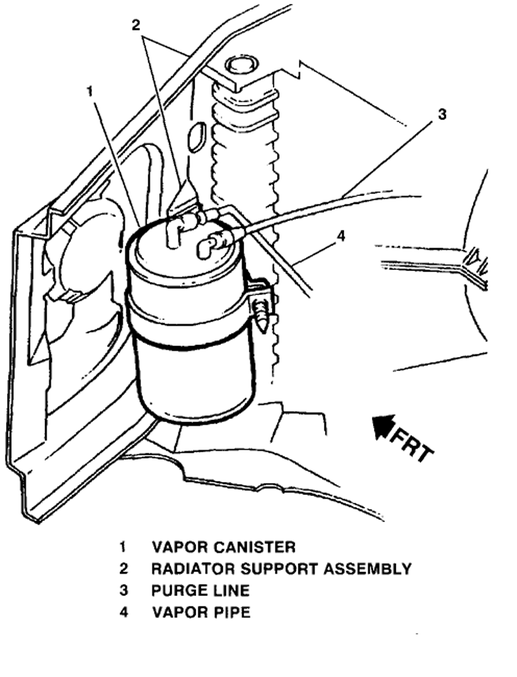

Fig. 3 Evaporative canister location.

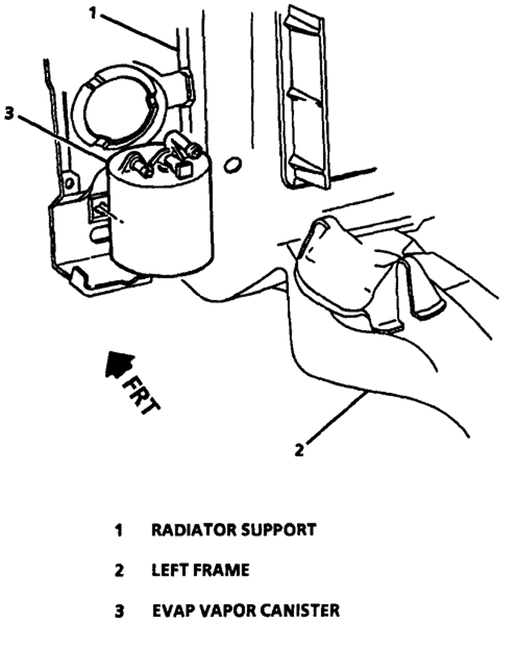

Fig. 4 Evaporative canister location. Regal, Lumina, Cutlass Supreme & Grand Prix
FWD

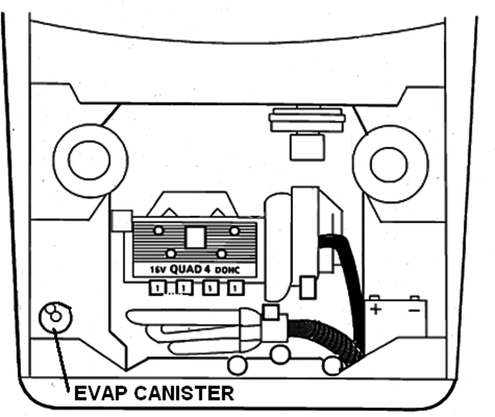

Fig. 5 Evaporative canister location. Skylark, Celebrity, Citation, Achieva, Calais,
Omega, Grand Am & 6000

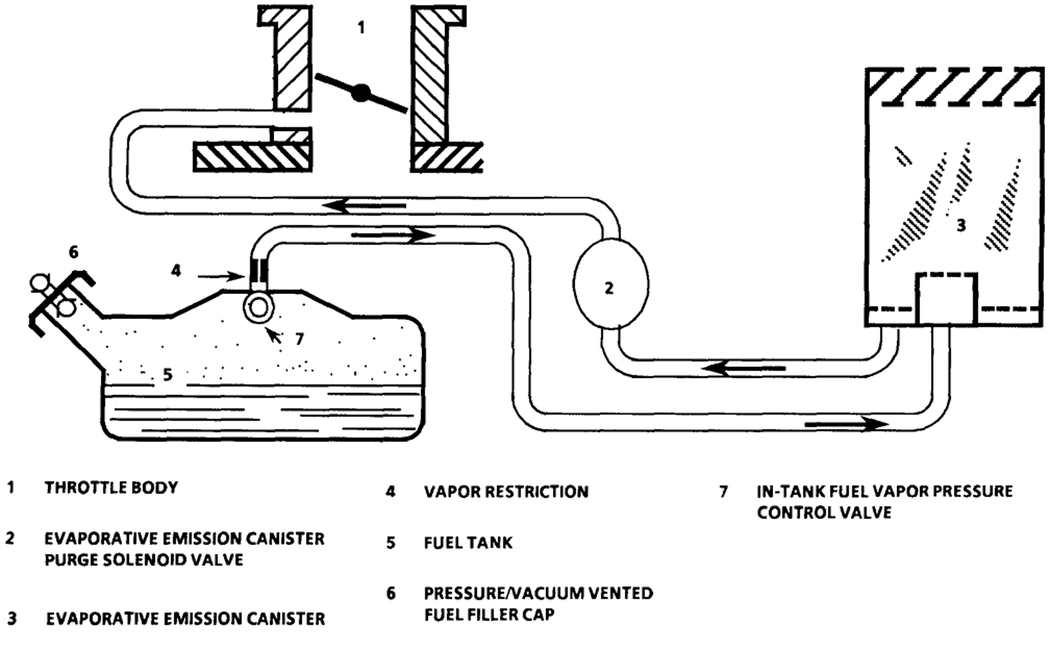

Fig. 6 EVAP system components. Chevrolet Astro Van & GMC Safari Van

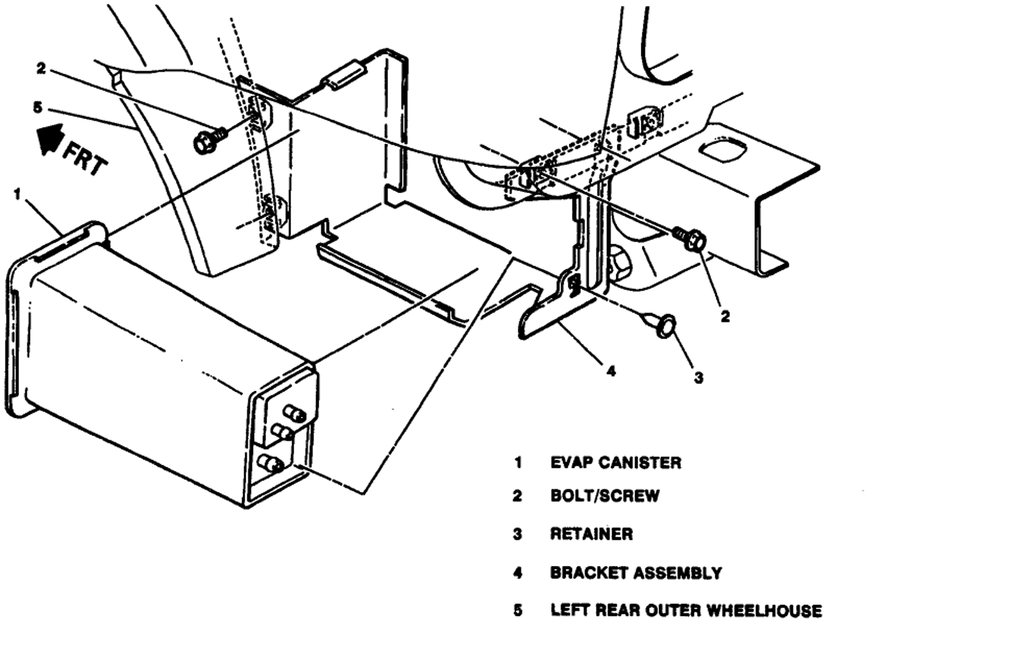

Fig. 7 EVAP system components. C/K Blazer, Cab-Chassis, Pickup, Suburban, Tahoe,
Jimmy & Yukon
Fig. 8 EVAP system components. Chevrolet Blazer S, S-10 & GMC Jimmy S, S-15 & Sonoma

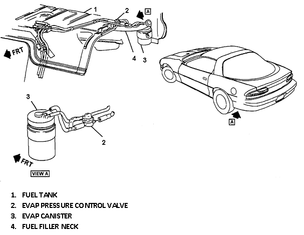

Fig. 9 Evaporative canister location. Chevrolet Camaro & Pontiac Firebird

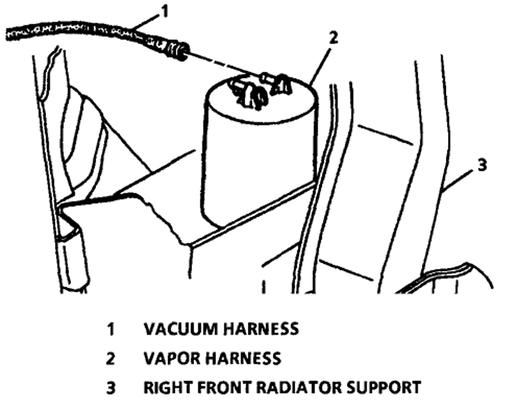

Fig. 10 EVAP system component locations.
Fig. 11 Evaporative canister location. Chevrolet Corvette
Fig. 12 EVAP system components. Chevrolet & GMC G Series
Fig. 13 EVAP system component locations. Chevrolet Nova FWD & Geo Prizm
Fig. 14 EVAP canister location. Chevrolet & Geo Spectrum

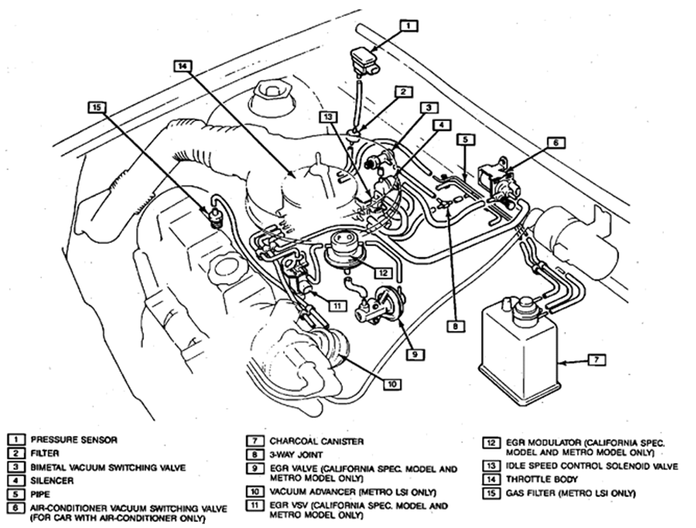

Fig. 15 Evaporative canister location. Chevrolet Sprint & Geo Metro

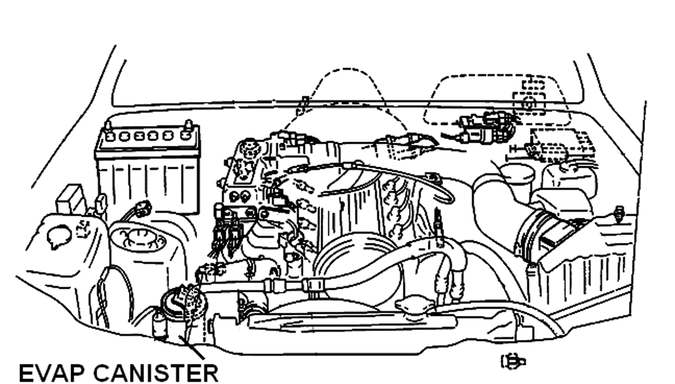

Fig. 16 EVAP system components. Chevrolet & Geo Tracker

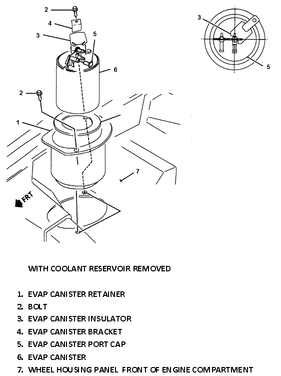

Fig. 17 EVAP system component locations. Saturn S Series (behind lefthand front
wheel housing cover)
Gasoline & Alternative Fuel Engine Vehicles
Visual Inspection
To ensure proper operation of
all emission control system components it is required to perform a visual
inspection. R ...
