Chevrolet Cobalt Service & Repair Manual: Rear Bumper Fascia Bracket

Removal

1. Remove rear bumper fascia as outlined in Rear Bumper Fascia.
2. Remove rear bumper fascia side bracket bolts (1), Fig. 1.
3. Remove rear bumper fascia side bracket (2).
4. Remove wiring harness retainers from center bracket studs.
5. Remove rear bumper fascia center bracket nuts (3).
6. Remove rear bumper fascia center bracket (4).

Installation

1. Install rear bumper fascia center bracket (4), Fig. 1.
2. Install center bracket nuts (3). Torque to 89 inch lbs.
3. Install wiring harness retainers on center bracket studs.
4. Position rear bumper fascia side brackets (2) to body.
5. Install side bracket bolts (1). Torque to 22 inch lbs.
6. Install rear bumper fascia as outlined in Rear Bumper Fascia.

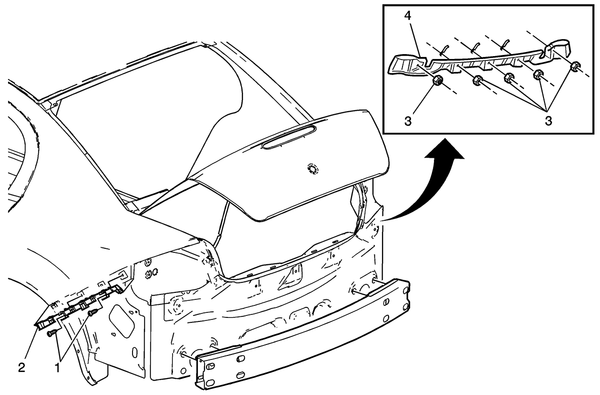

Fig. 1 Rear bumper fascia bracket (coupe)
