Chevrolet Cobalt Service & Repair Manual: High Mount Stoplamp Bulb, Replace
| 1. |
Remove rear compartment lid inner panel
trim. |
| 2. |
Disengage tabs on high mount stoplamp
bulb connector (1) and remove connector from high mount stoplamp,
Fig. 1. |
| 3. |
Remove high mount stoplamp bulb (2),
Fig. 1. |
| 4. |
Reverse procedure to install. |
|

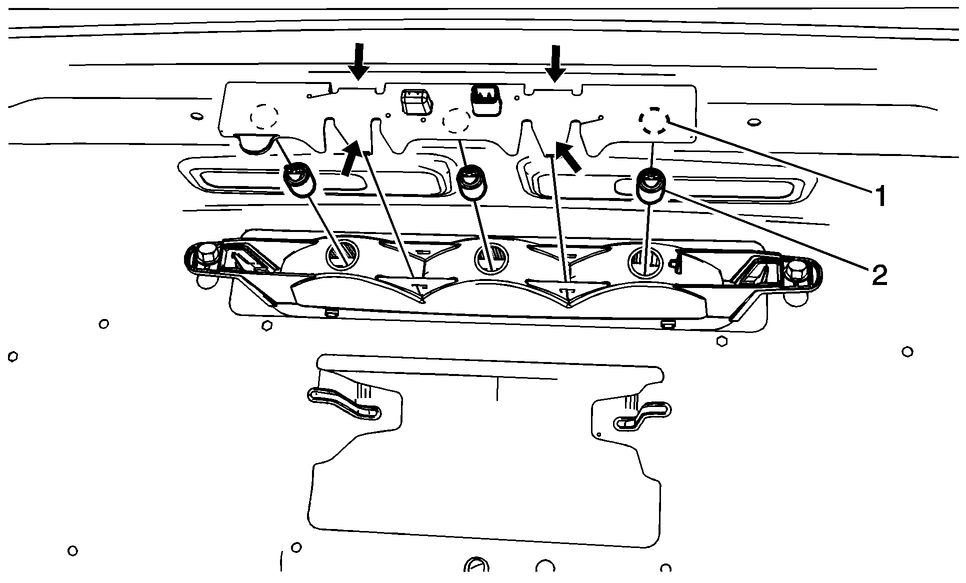

Fig. 1 High mount stoplamp bulb removal. Coupe
