Chevrolet Cobalt Service & Repair Manual: Window Switch R&R

Refer to Fig. 1 when performing following procedure.
1. Remove door panel pull cup trim plate.
2. Remove armrest pull cup.
3. Remove door lock switch and disconnect electrical connector.
4. Reverse procedure to install. Torque door panel pull cup screw to 18 inch lbs.

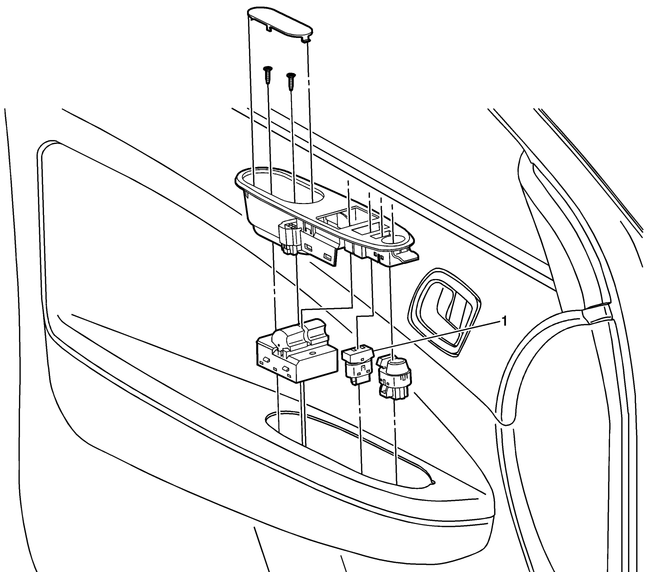

Fig. 1 Door lock switch replacement
