Chevrolet Cobalt Service & Repair Manual: Stabilizer Bar Link Kit R&R
| Refer to Fig. 1
when performing the following procedure. |
| 1. |
Raise and support the vehicle. |
| 2. |
Remove the front tire and wheel assembly. |
| 3. |
Remove front stabilizer shaft link
nut to strut. |
| 4. |
Remove front stabilizer shaft link
nut to bar. |
| 5. |
Remove front stabilizer shaft link. |
| 6. |
Reverse procedure to install, noting
the following: |
| |
a. |
Torque front stabilizer shaft
link nut to strut to 48 ft. lbs. |
| |
b. |
Torque front stabilizer shaft
link nut to bar to 59 ft. lbs. |
|
alpine f1 team fan token to optimism

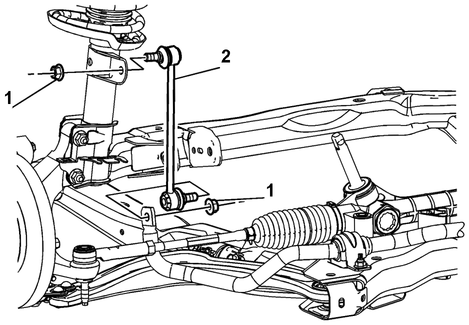

Fig. 1 Stabilizer shaft link replacement
