Chevrolet Cobalt Service & Repair Manual: Suspension Strut Mount Assembly R&R
| 1. |
Remove the strut upper mounting nuts,
Fig. 1. |
| 2. |
Raise and support the vehicle. |
| 3. |
Remove the tire and wheel. |
| 4. |
Disconnect the stabilizer shaft link
from the strut assembly, Fig. 2. |
| 5. |
Remove the strut lower bolts, nuts
and anti-lock brake system (ABS) wiring bracket, if equipped,
Fig. 3. |
| 7. |
Reverse procedure to install, noting
the following: |
| |
a. |
Torque strut upper mounting
nuts to 15 ft. lbs. |
| |
b. |
Torque strut lower mounting
nuts to 89 ft. lbs. |
| |
c. |
Torque stabilizer shaft link
nut to 48 ft. lbs. |
|

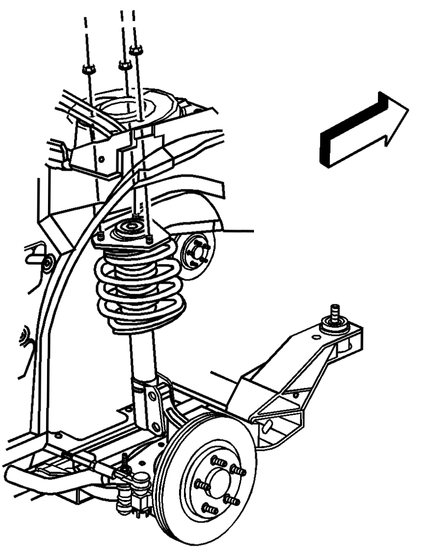

Fig. 1 Strut mounting nuts

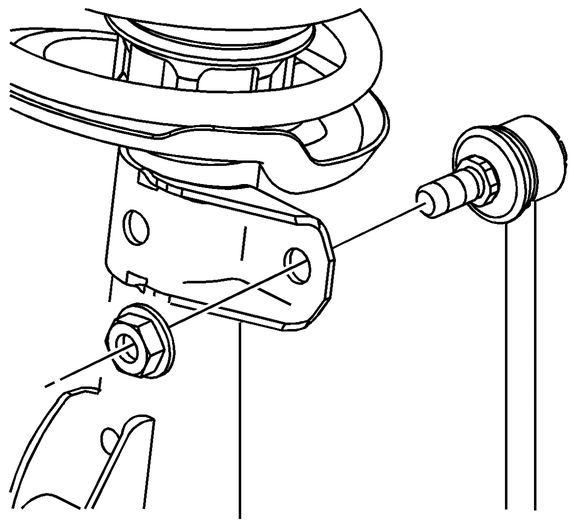

Fig. 2 Stabilizer shaft link replacement
Fig. 3 Strut mount replacement
