Front

Note depth and orientation of old bushing before removal.
1. Raise and support vehicle.
2. Remove lower control arm.
3. Wrap control arm with a shop towel and place it in a vise.

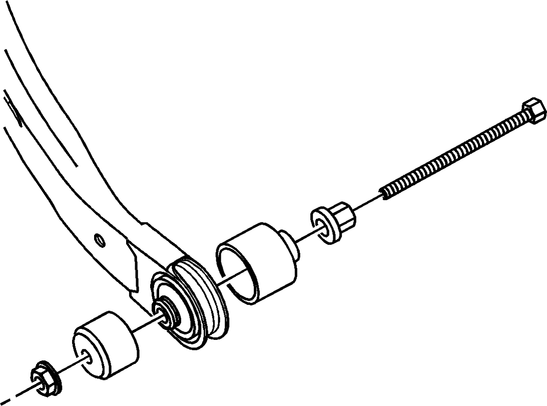

4. Remove control arm bushing from lower control arm, using front control arm bushing set tool No. J-41211, or equivalent, Fig. 1.
5. Disassemble tools and remove bushing.
6. Reverse procedure to install, noting following:
  a. Place NEW bushing to tapered side of control arm.
  b. Install control arm bushing in lower control arm, using front control arm bushing set tool No. J-41211, or equivalent.
  c. Install bushing to same depth and orientation as noted during removal.

Fig. 1
