Chevrolet Cobalt Service & Repair Manual: Door Latch
Front
| 1. |
Remove front door trim panel as outlined
in "Door Trim Panel.". |
| 2. |
Remove water deflector from front door. |
| 3. |
Remove three door latch retaining screws,
Fig. 1. |
| 4. |
Disengage door lock rod from door latch,
then remove latch. |
| 5. |
Reverse procedure to install, torque
door latch to 89 inch lbs. |
|
Rear
| 1. |
Remove front door trim panel as outlined
in "Door Trim Panel.". |
| 2. |
Remove water deflector from front door. |
| 3. |
Remove three door latch retaining screws,
Fig. 2. |
| 4. |
Disengage door lock rod from door latch,
then remove latch. |
| 5. |
Reverse procedure to install, torque
door latch to 89 inch lbs. |
|

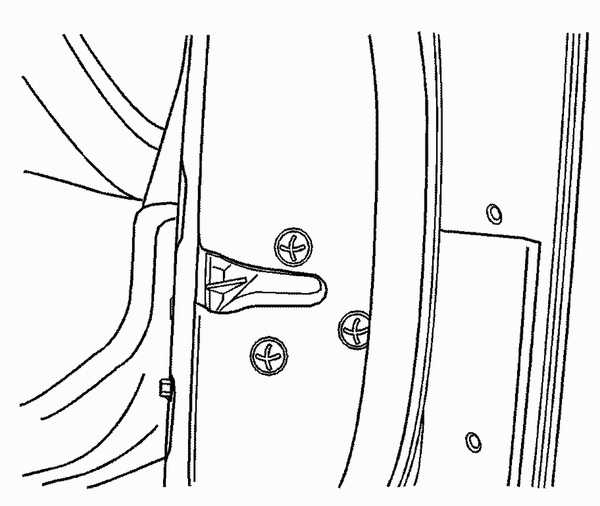

Fig. 1 Front door latch retaining screw locations

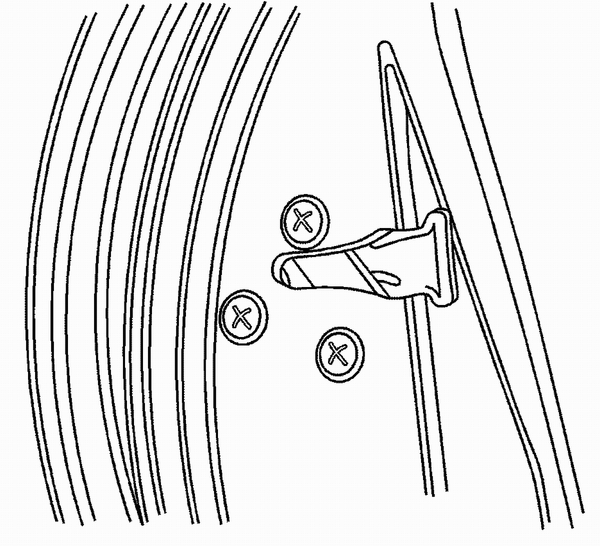

Fig. 2 Rear door latch retaining screw locations
Exterior
Front
1.
Remove front door trim panel as outlined
in "Door Trim Panel."
2.
Remove front door water deflector.
...
1.
Remove exterior door handle as outlined
in "Door Handle.".
2.
Disengage lock rod from door lock cylinder.
...
