Chevrolet Cobalt Service & Repair Manual: Windshield Wiper Blade R&R

Chevrolet Cobalt Service & Repair Manual / Electrical / Component Replacement / Windshield Wiper Blade R&R

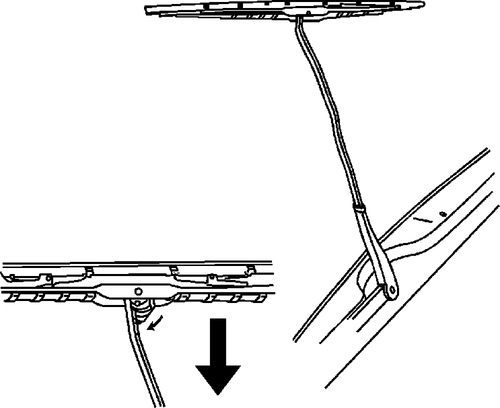

1. Move wiper arm to service up position, Fig. 1.
2. Press wiper blade retainer button in to release wiper blade from inside radius of wiper arm, Fig. 1.
3. Remove wiper blade out through opening in wiper arm, Fig. 1.
4. Reverse procedure to install.

Fig. 1
