1. Remove interior trim panel.
2. Remove water deflector.
3. Move window to full up position and secure in place with tape.
4. Remove side door window regulator nut, Fig. 1.
5. Remove side door window regulator bolts, Fig. 1.
6. Remove front side door window regulator assembly, Fig. 1.
7. Reverse procedure to install. Torque window regulator fasteners to 89 inch lbs.
Power
1. Remove interior trim panel.
2. Remove water deflector.
3. Move window to full up position and secure in place with tape.
4. Remove side door window regulator nut, Fig. 2.
5. Remove side door window regulator bolts, Fig. 2.
6. Disconnect electrical connector.
7. Remove front side door window regulator assembly, Fig. 2.
8. Reverse procedure to install. Torque window regulator fasteners to 89 inch lbs.

Sedan

Manual
1. Remove interior trim panel.
2. Remove water deflector.
3. Move window to full up position and secure in place with tape.
4. Remove side door window regulator bolts, Fig. 3.
5. Remove front side door window regulator assembly, Fig. 3.
6. Reverse procedure to install. Torque window regulator bolts to 89 inch lbs.
Power
1. Remove interior trim panel.
2. Remove water deflector.
3. Move window to full up position and secure in place with tape.
4. Remove side door window regulator bolts, Fig. 4.
5. Disconnect electrical connector.
6. Remove front side door window regulator assembly, Fig. 4.
7. Reverse procedure to install. Torque window regulator bolts to 89 inch lbs.

Rear

Manual

Loosen bolts enough so that regulator assembly will lift out of T-slots in door inner panel.
1. Remove interior trim panel.
2. Remove water deflector.
3. Move window to full up position and secure in place with tape.
4. Remove side door window regulator bolts, Fig. 5.
5. Remove rear side door window regulator assembly, Fig. 5.
6. Reverse procedure to install. Torque rear window regulator bolts to 89 inch lbs.

Power

Loosen bolts enough so that regulator assembly will lift out of T-slots in door inner panel.
1. Remove interior trim panel.
2. Remove water deflector.
3. Move window to full up position and secure in place with tape.
4. Remove side door window regulator bolts, Fig. 6.
5. Disconnect electrical connector.
6. Remove rear side door window regulator assembly, Fig. 6.
7. Reverse procedure to install. Torque rear window regulator bolts to 89 inch lbs.

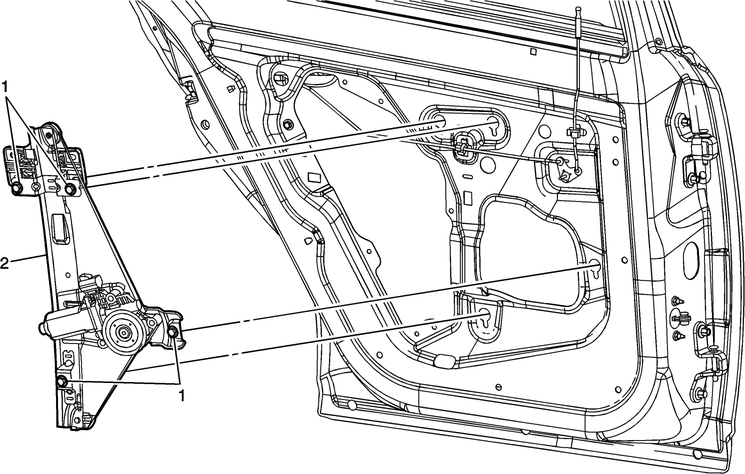

Fig. 1

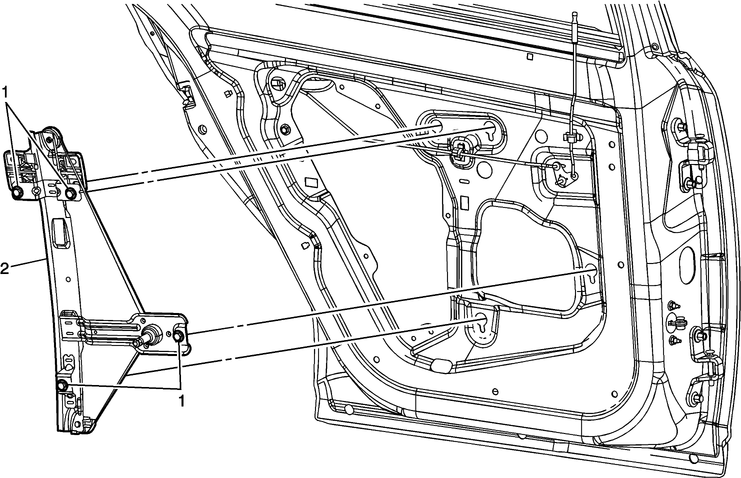

Fig. 2

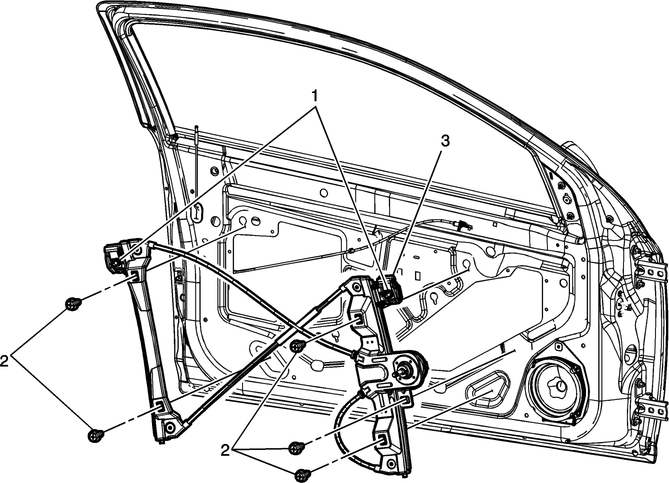

Fig. 3

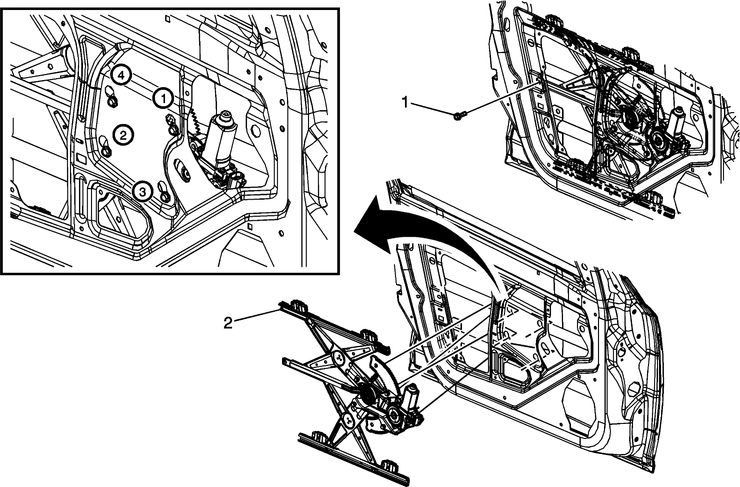

Fig. 4

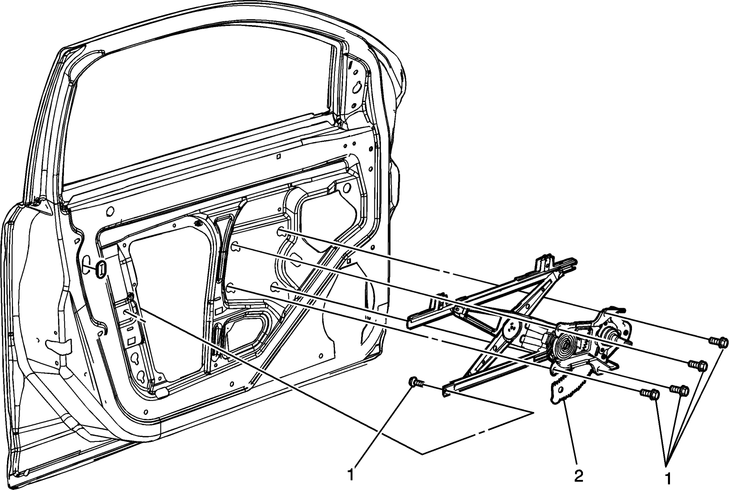

Fig. 5

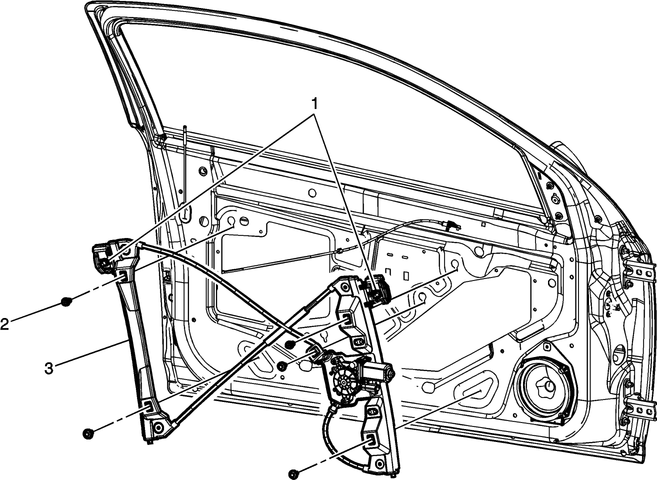

Fig. 6

    Liftgate Lock Cylinder R & R
    Refer to Fig. 1 when performing the following procedure. 1. Remove lock cylinder rod. 2. Remove lock cylinder retainer clip. ...

    Window Regulator, Overhaul
    1. Remove door trim panel as outlined in "Door Trim Panel." 2. Remove window regulator as outlined in "Window Regula ...
