Chevrolet Cobalt Service & Repair Manual: Liftgate Lock Cylinder R & R

Refer to Fig. 1 when performing the following procedure.
1. Remove lock cylinder rod.
2. Remove lock cylinder retainer clip.
3. Remove rear compartment lock.
4. Reverse procedure to install.

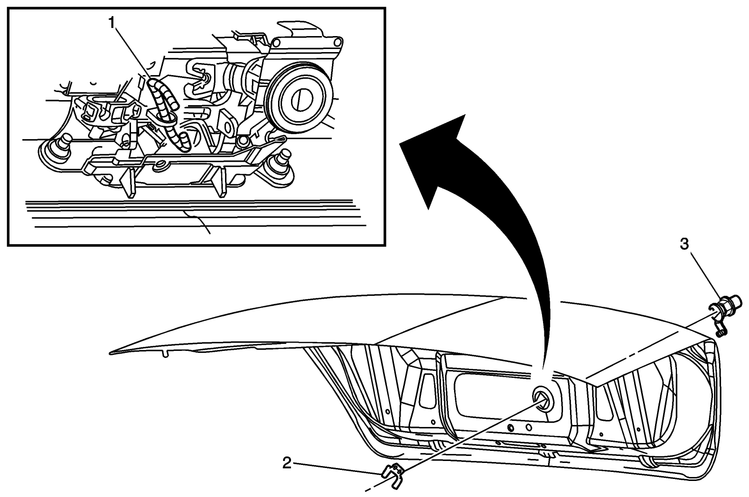

Fig. 1 liftgate lock cylinder replacement
