Chevrolet Cobalt Service & Repair Manual: Wheel Bearing, Replace

Chevrolet Cobalt Service & Repair Manual / Steering & Suspension / Wheel Bearing, Replace

Front

1. Raise and support vehicle using suitable lift.
2. Remove tire and wheel assemblies.
3. Remove drive axle nut, Fig. 1.
4. Remove brake caliper and rotor assembly.
5. Remove hub and bearing assembly, Figs. 2 and 3.
6. Reverse procedure to install.

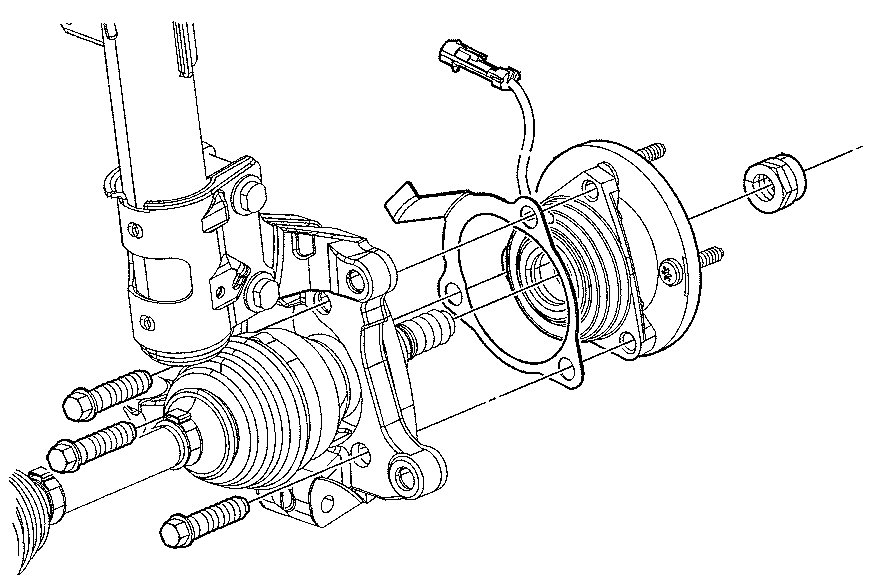

Fig. 1 Drive axle nut removal

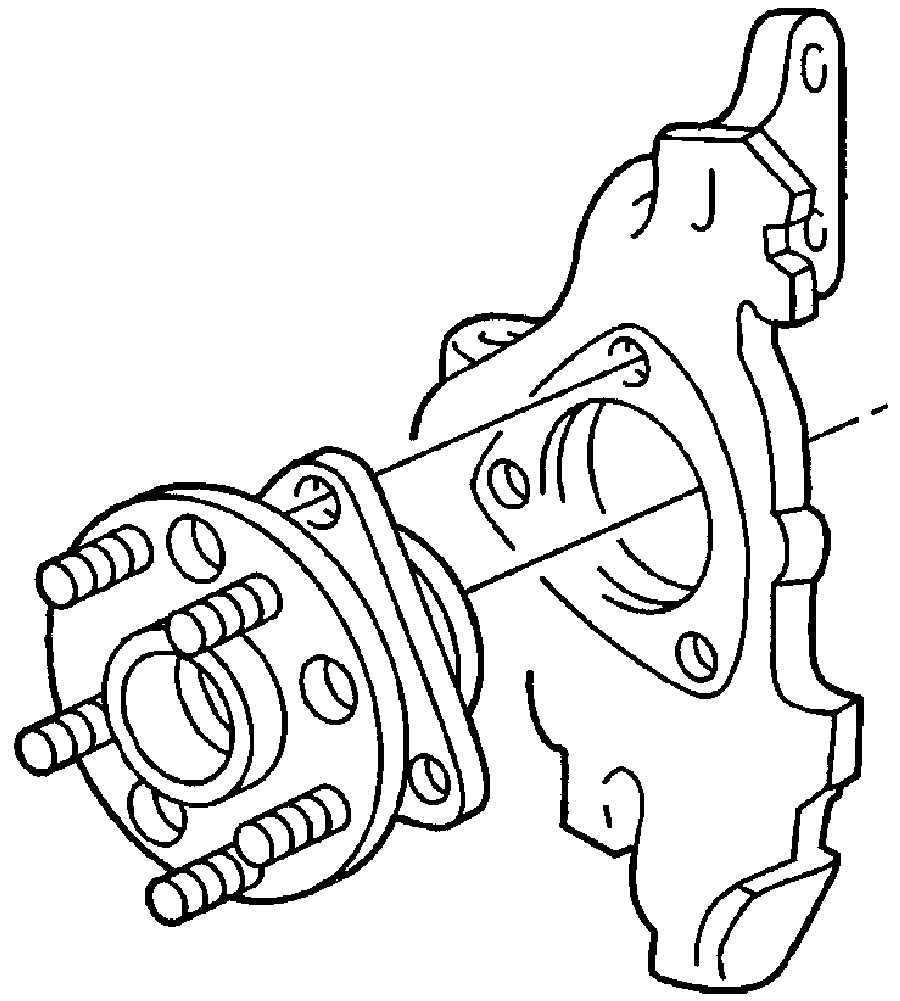

Fig. 2 Hub & bearing assembly removal

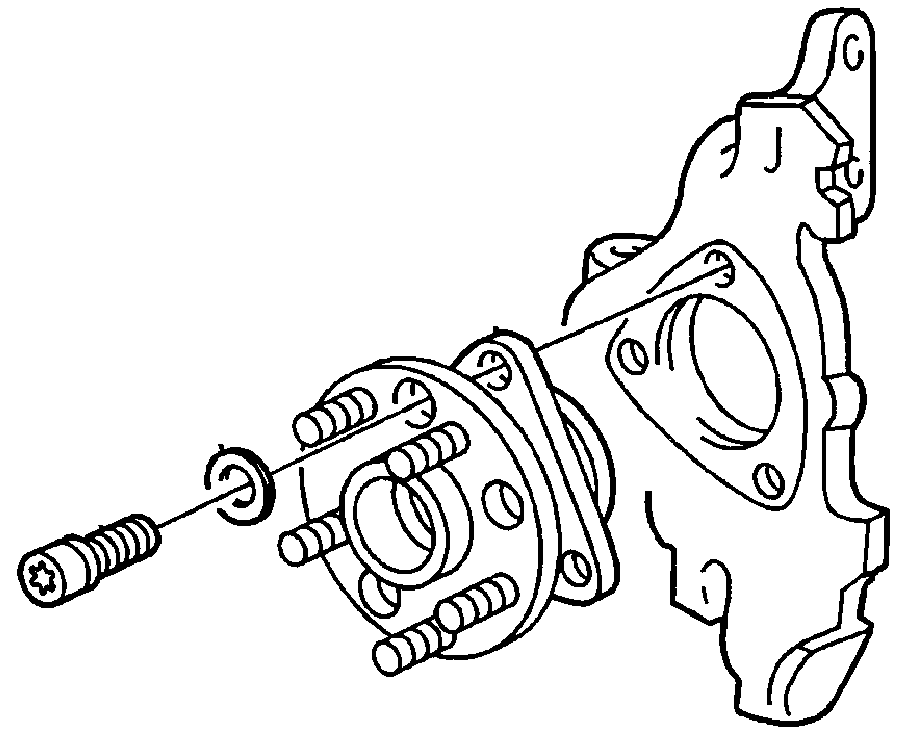

Fig. 3 Hub & bearing assembly removal. Cobalt & G5
