Chevrolet Cobalt Service & Repair Manual: Blower Motor Resistor, Replace

1. Disconnect blower motor resistor electrical connector, Fig. 1.
2. Unsnap blower motor resistor from HVAC module, then remove resistor.
3. Reverse procedure to install.

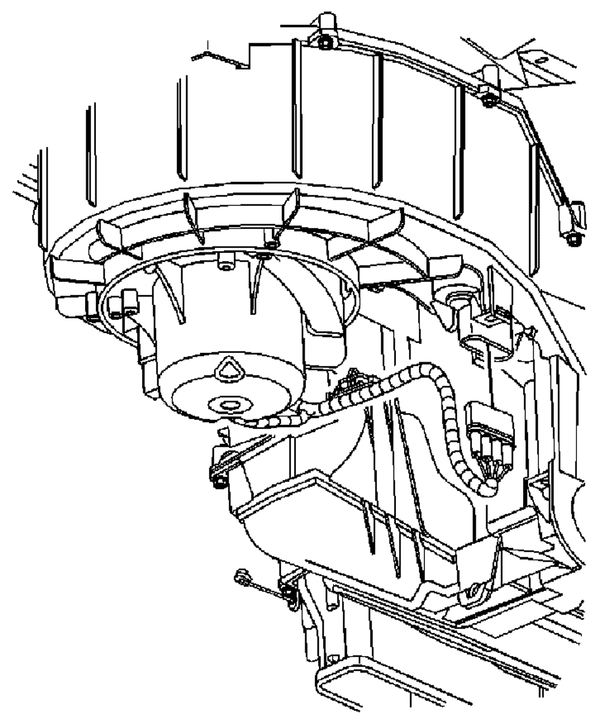

Fig. 1 Blower motor resistor & connector replacement
